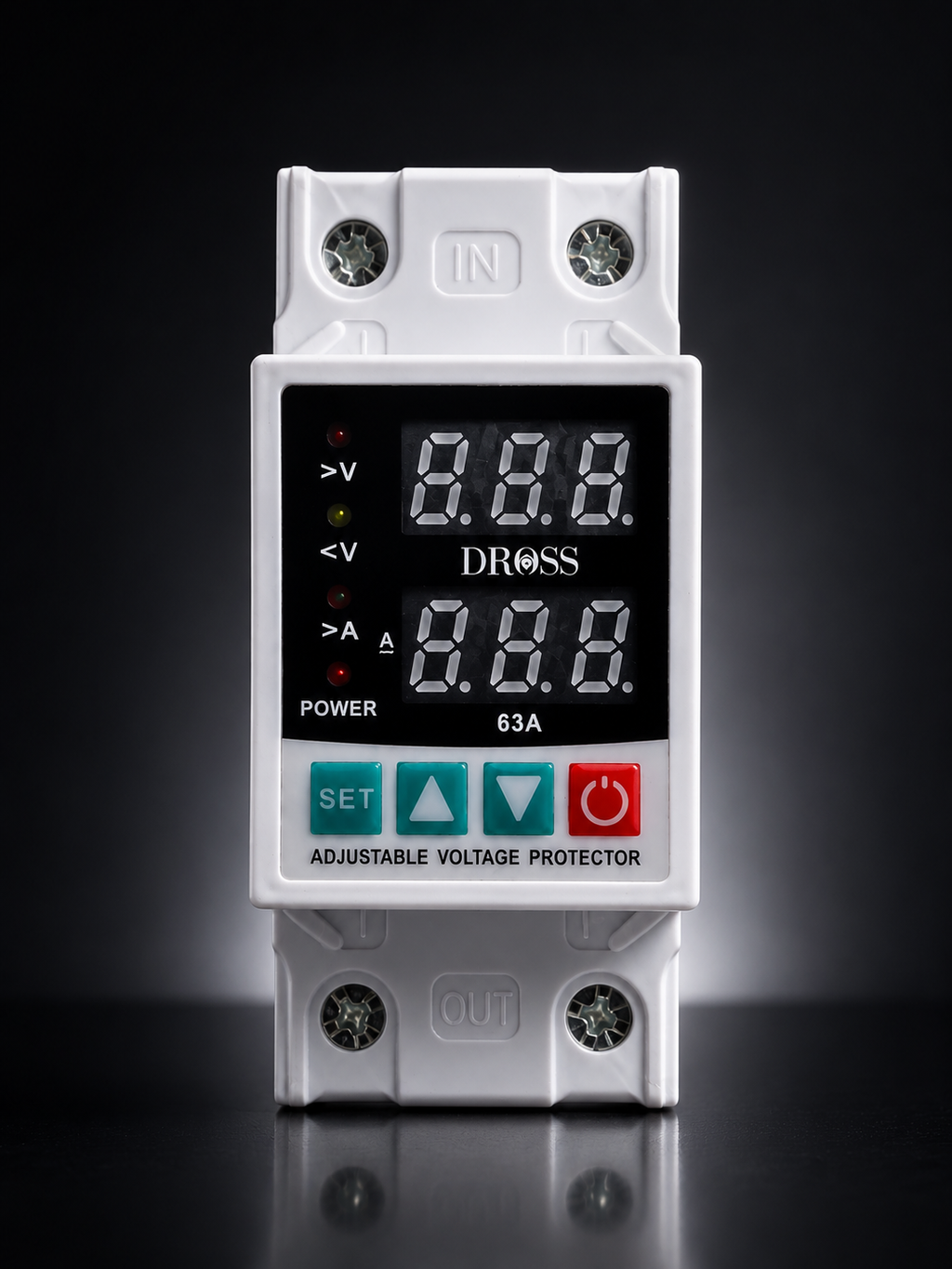

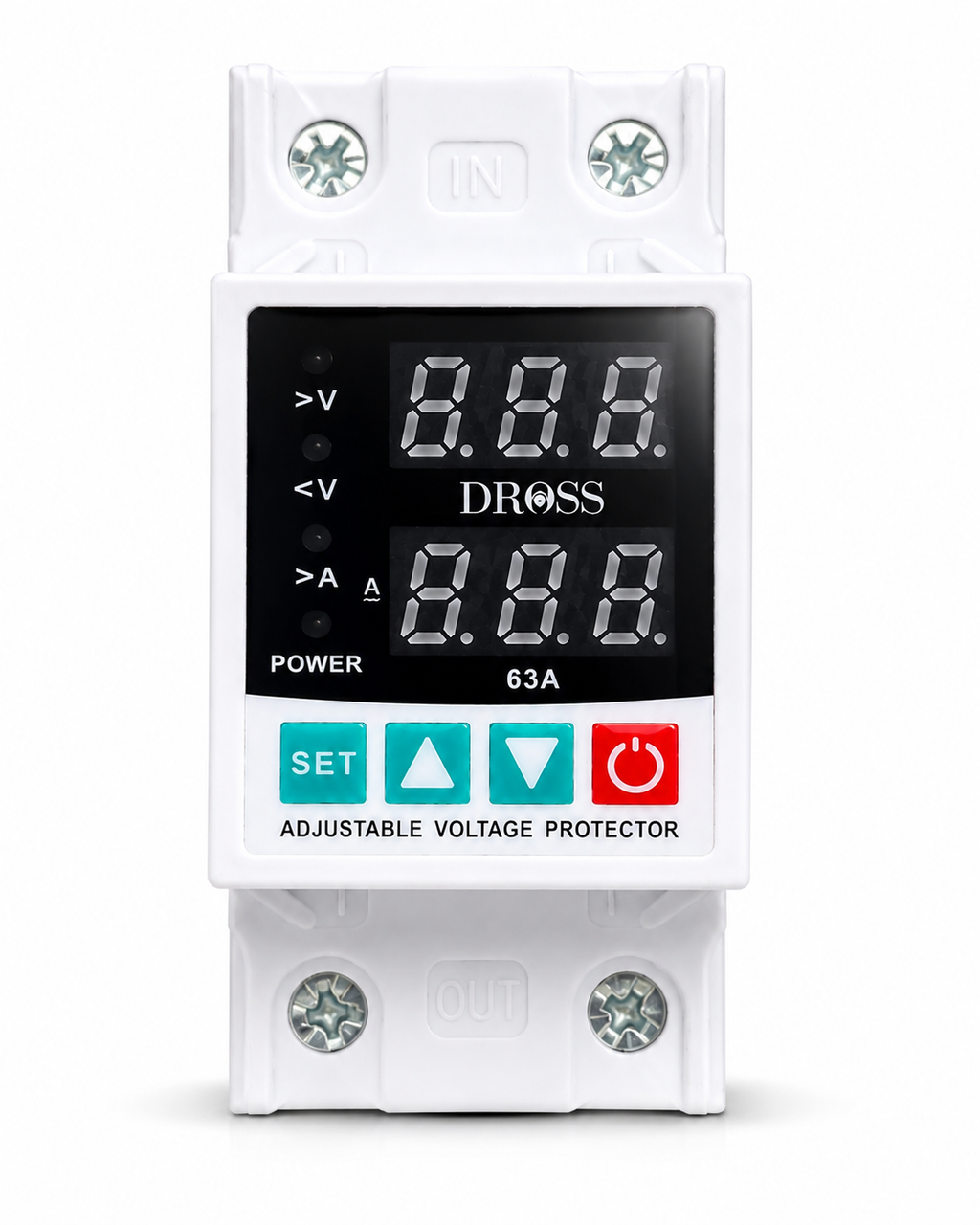

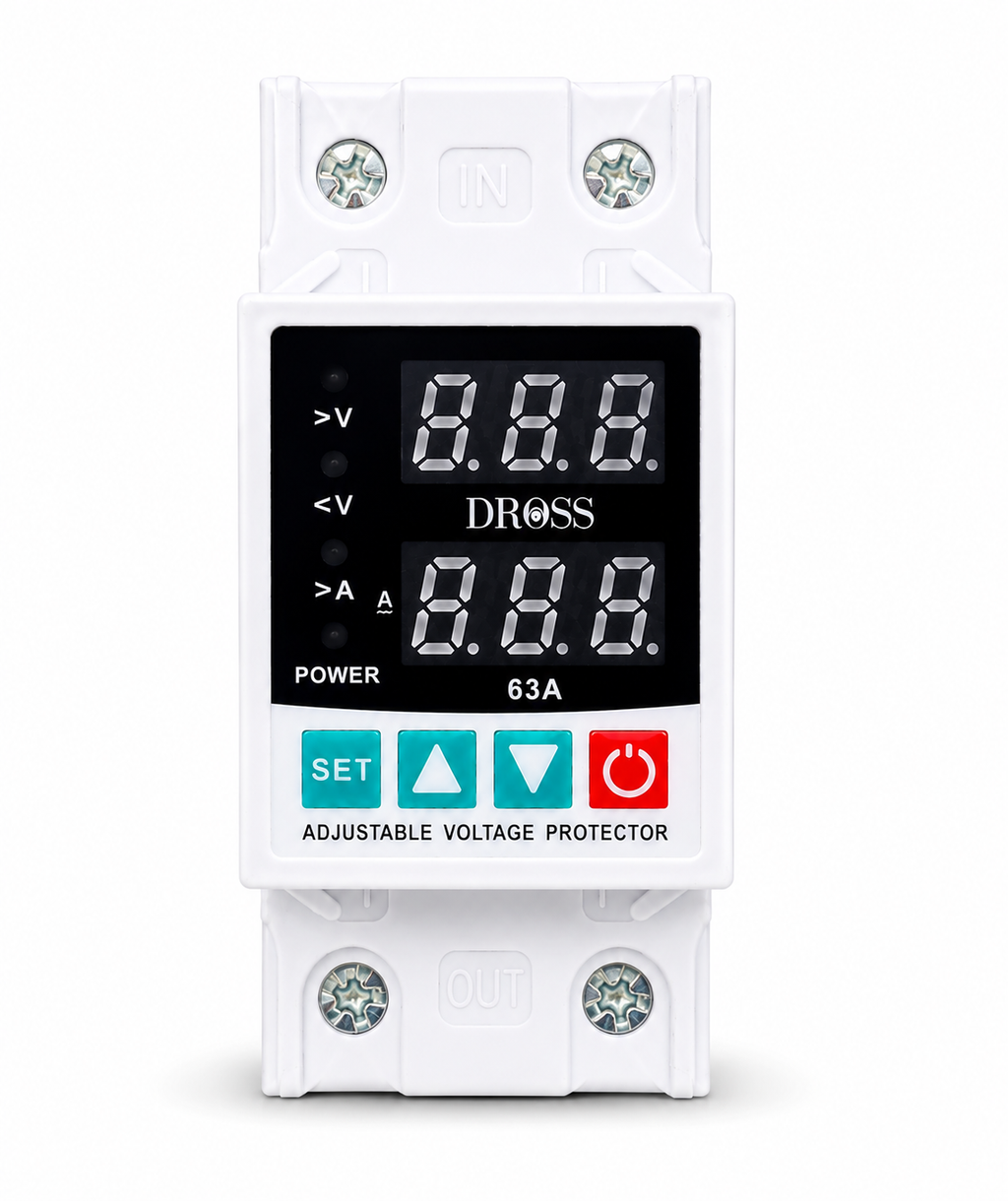

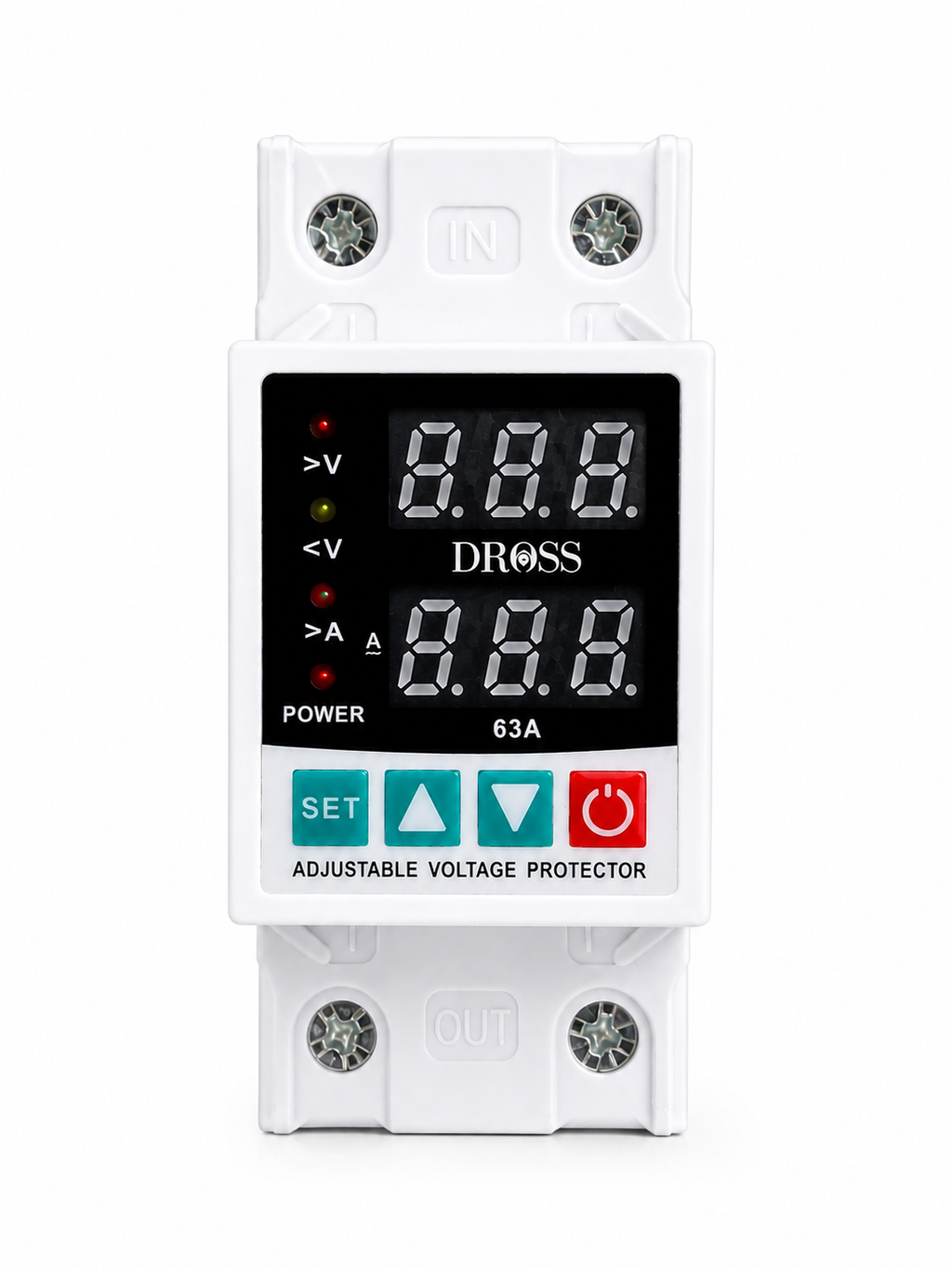

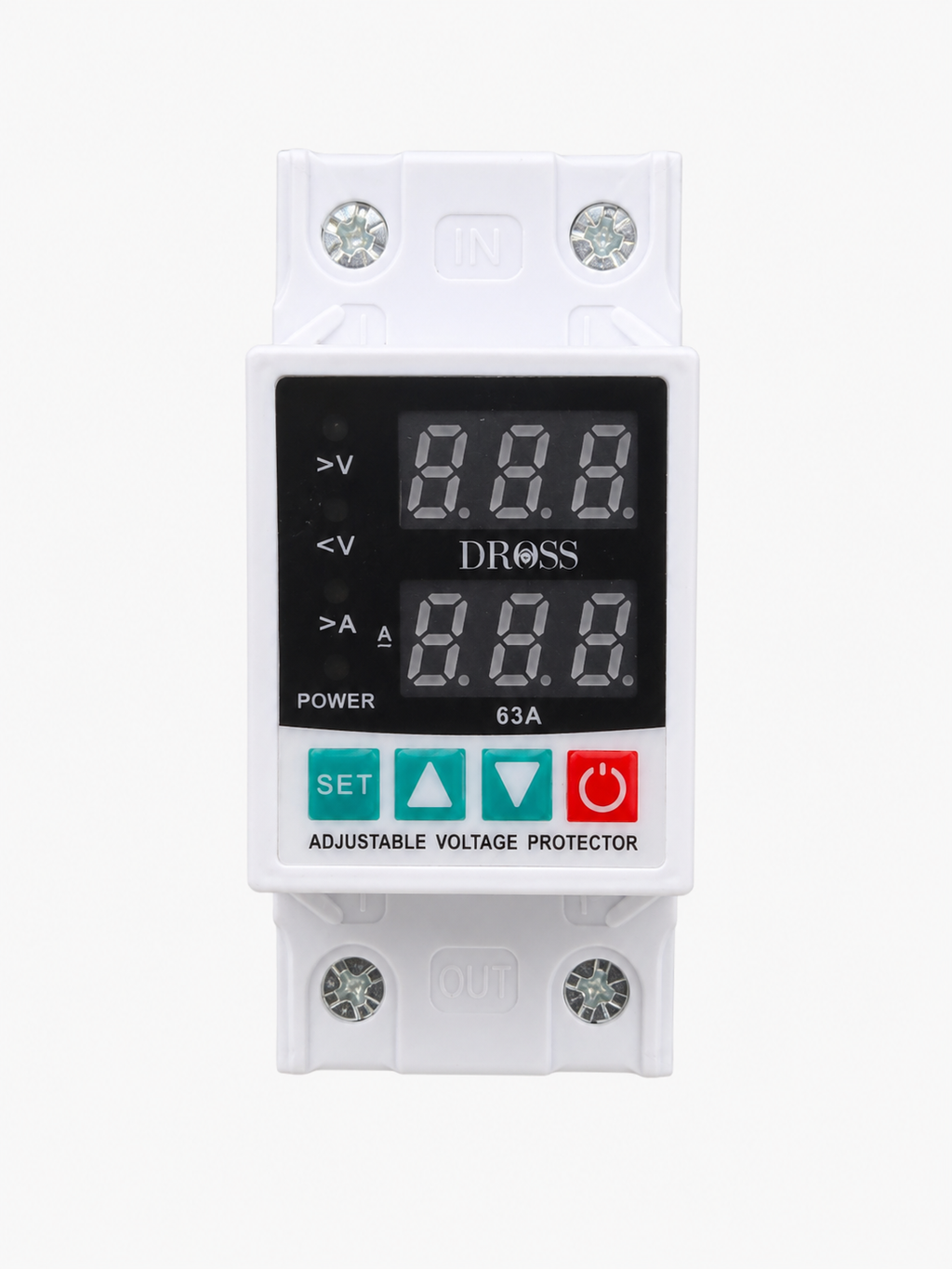

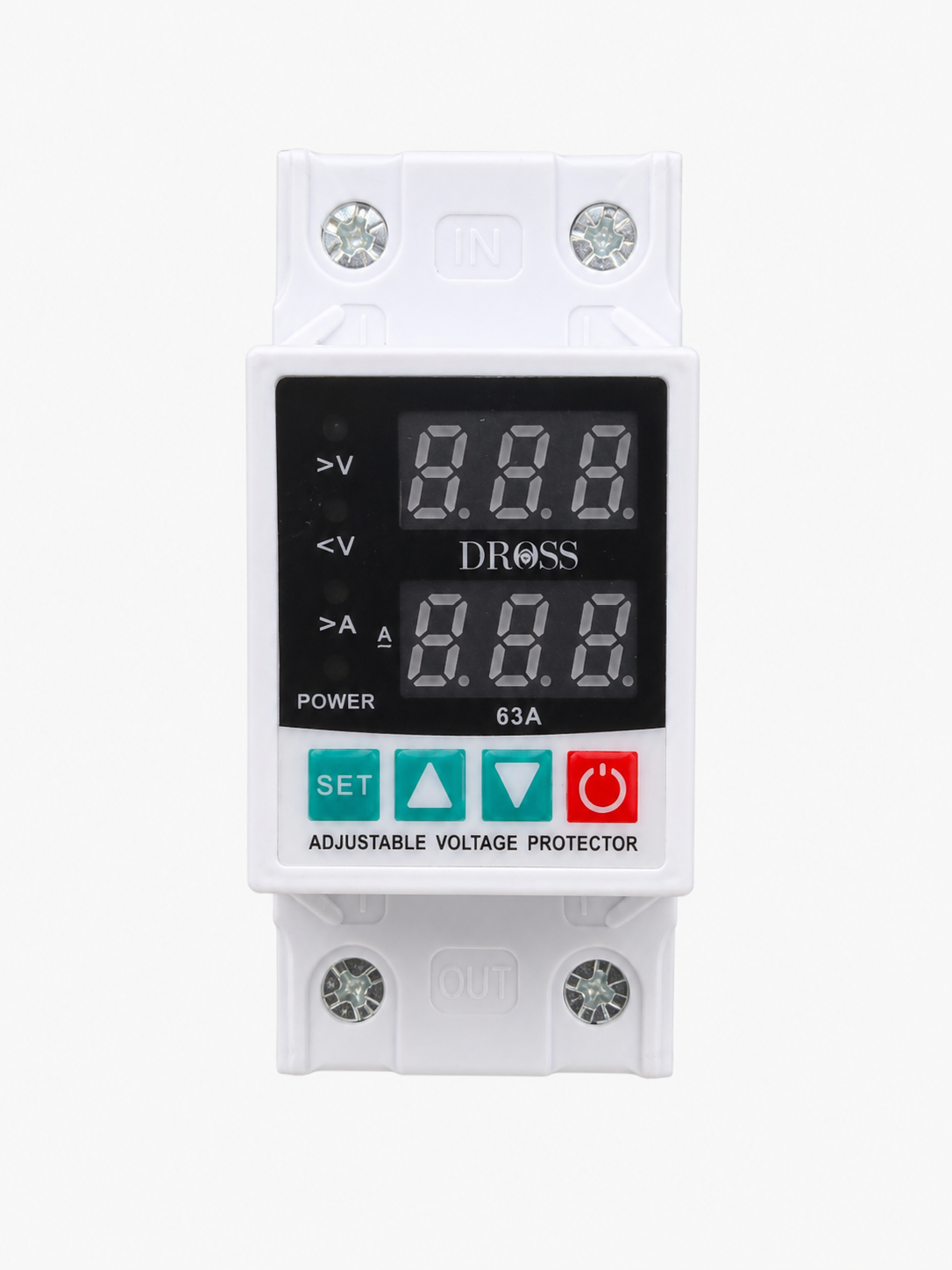

63A Automatic Voltage Protector for AC, Fridge & Home | 80V-300V | DROSS

The DROSS 63A Automatic Voltage Protector keeps your AC, refrigerator, water pump and other sensitive appliances safe from voltage fluctuations, over-current and power surges. When the supply goes outside the safe range, it cuts the power to your appliances. When the supply is normal again, it reconnects automatically. No need to reset it every time.

Key benefits

• Wide 80V–300V operating range: protects against both low voltage and high voltage.
• Over and under voltage protection: power is cut before a bad supply can damage your appliances.
• Over-current protection: protects your wiring and appliances from overload.
• Auto recovery: supply is restored automatically once voltage returns to normal.
• Adjustable settings: set the cut-off limits using the buttons and display on the unit.
• DIN rail mounting: fits neatly in your MCB / distribution box.

Ideal for

Air conditioners, refrigerators, water pumps, washing machines, TVs and other sensitive home and shop appliances.

How to install

1. Switch OFF the main supply (main MCB) before starting.
2. Fix the protector on the DIN rail in your distribution box, after the main MCB.
3. Connect the incoming supply to the input terminals and the appliance load to the output terminals, as marked on the unit.
4. Tighten all terminals firmly and close the box.
5. Switch ON the supply and set the voltage and current limits using the buttons on the display.

Installation should be done by a licensed electrician.

What's in the box

• 1 × DROSS 63A Automatic Voltage Protector

Frequently asked questions

Which appliances can I connect?
Your AC, refrigerator, water pump, washing machine and other home appliances, as long as the total load is within 63A.

What happens when voltage goes too high or too low?
The protector cuts the power to your appliances and reconnects automatically once the voltage is back within the safe range.

Do I need an electrician to install it?
Yes, we recommend a licensed electrician. It is a simple DIN rail installation and takes a few minutes.

Do I get a warranty?
Yes. Every DROSS protector comes with a 6-month warranty, and shipping is free across India. For any help, message us on WhatsApp at +91 99928 08001.

Can I buy in bulk for my shop or projects?
Yes, bulk rates are available for electricians and dealers. WhatsApp us for a quote.

Wiring connections (Single Phase 230V AC)

Terminal layout: IN (left) = Input Phase (L), IN (right) = Input Neutral (N), OUT (left) = Output Phase (L), OUT (right) = Output Neutral (N).

Wiring steps:

1. Turn OFF the main MCB before wiring.
2. Connect incoming supply (L & N) to an input MCB (63A, 2-pole recommended).
3. From the input MCB, wire phase and neutral into the protector's IN (upper) terminals
4. Wire the OUT (lower) terminals to an output MCB (63A, 2-pole, recommended/optional).
5. From the output MCB, connect onward to your load / distribution board (home wiring).
6. For 63A loads, use 10 sq.mm copper wire and tighten all terminal screws firmly. Recommended for a licensed electrician to install.
