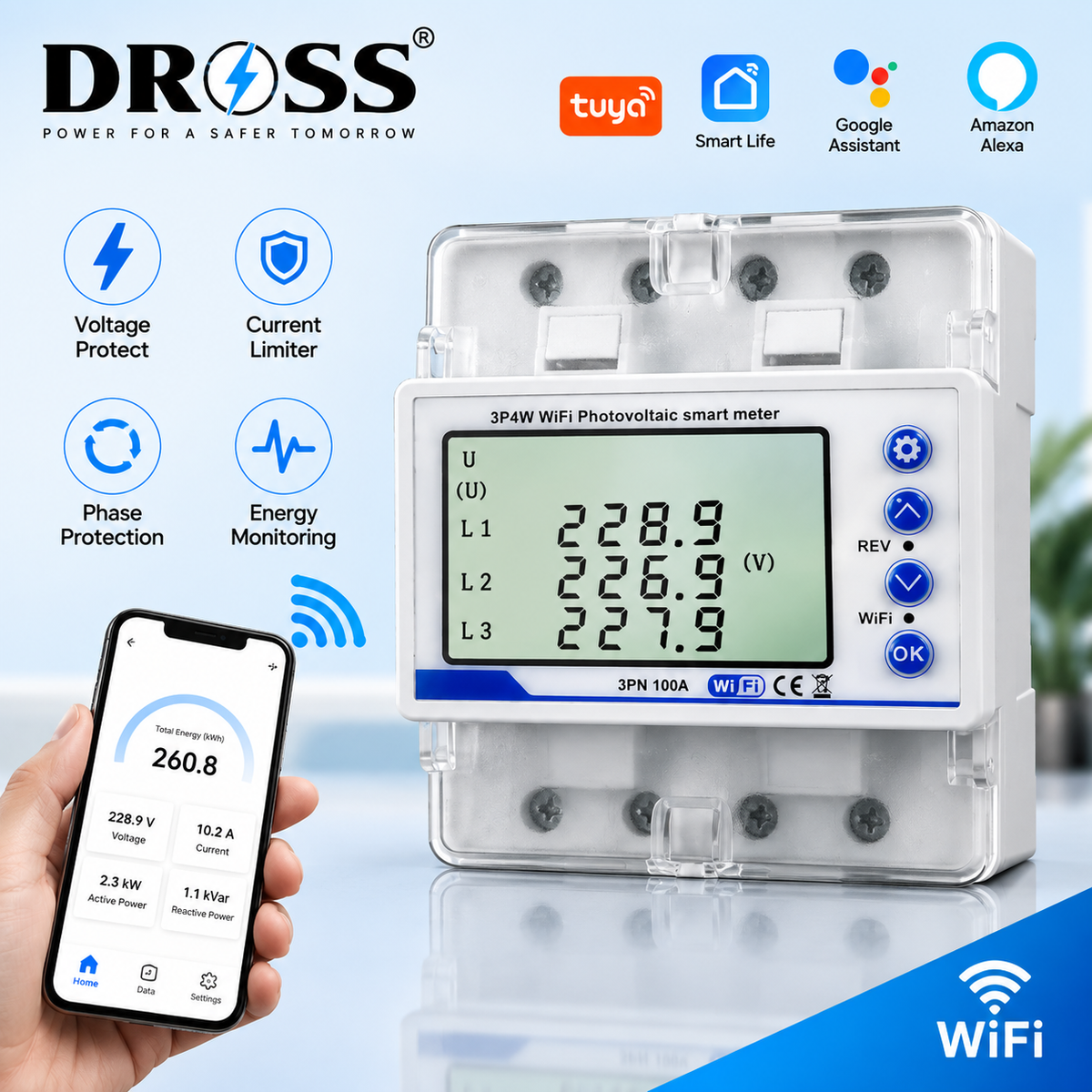

DROSS 100A 3 Phase 4 Wire WiFi Smart Energy Meter & Voltage Protector

The DROSS 100A 3 Phase 4 Wire WiFi Smart Energy Meter & Voltage Protector is designed for monitoring and managing electrical parameters in three-phase systems. It provides a clear digital display and WiFi connectivity, allowing convenient monitoring of electrical performance through a compatible smart application.

With support for L1, L2, L3 and Neutral (N) connections, the device is suitable for residential, commercial, industrial and solar electrical installations.

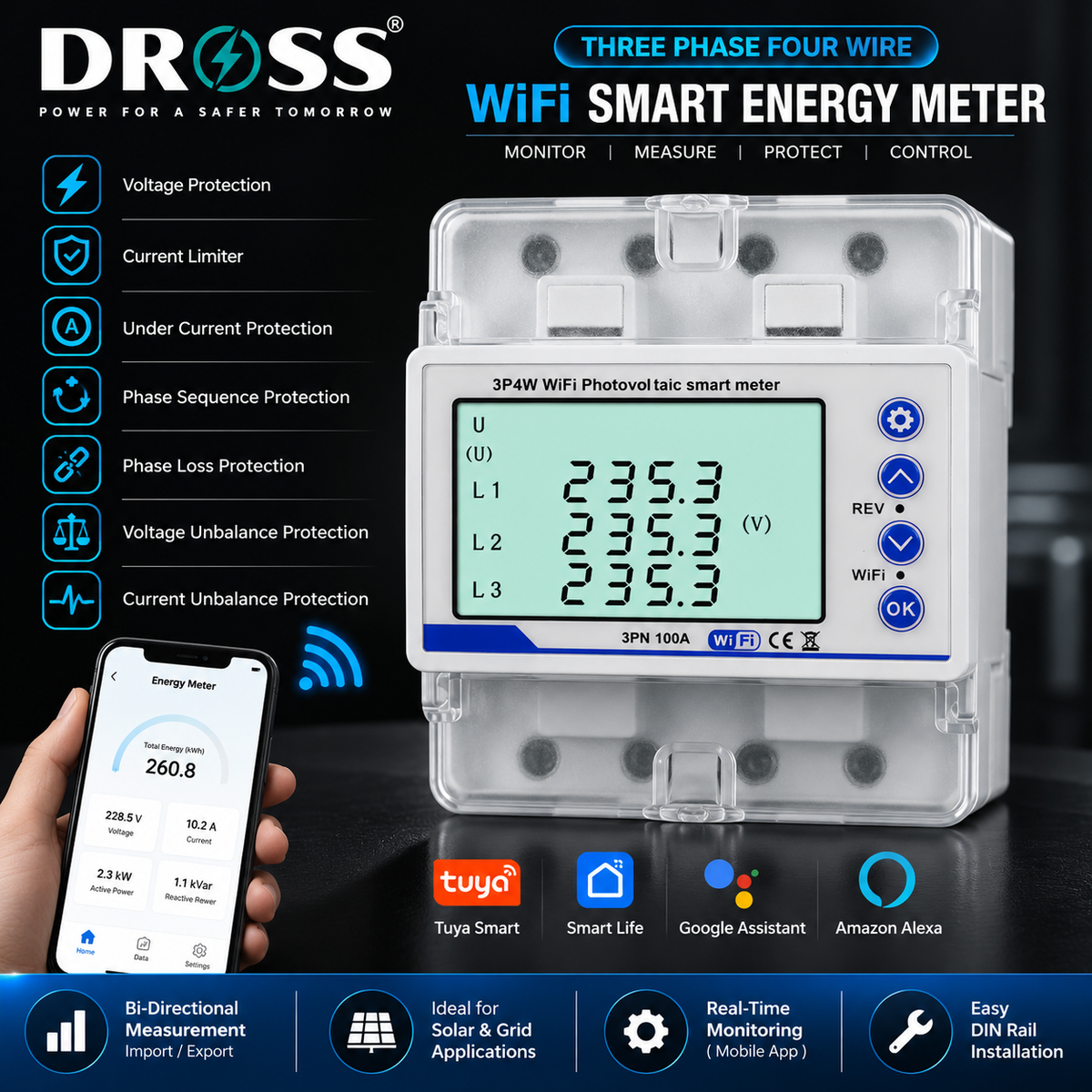

Key Features

• 100A Rated Current
• 3 Phase 4 Wire (3P4W)
• WiFi Smart Connectivity
• Real-time electrical parameter monitoring
• Digital LCD display
• Three-phase voltage monitoring
• Current and energy measurement
• Voltage protection
• Current limiting/protection
• Phase sequence protection
• Phase-loss protection
• Voltage and current imbalance protection
• Bi-directional energy measurement
• Remote monitoring through compatible smart app
• Compact DIN Rail Mount design

Smart Monitoring

Connect the meter to WiFi and monitor important electrical parameters conveniently through a compatible smart-home application. It is suitable for applications where remote energy monitoring and electrical protection are required.

Applications

• Homes & Apartments
• Shops & Offices
• Commercial Electrical Panels
• Solar Power Systems
• Three-Phase Distribution Boards
• Industrial & Electrical Installations

Technical Specifications

Brand: DROSS
Rated Current: 100A
System: 3 Phase 4 Wire

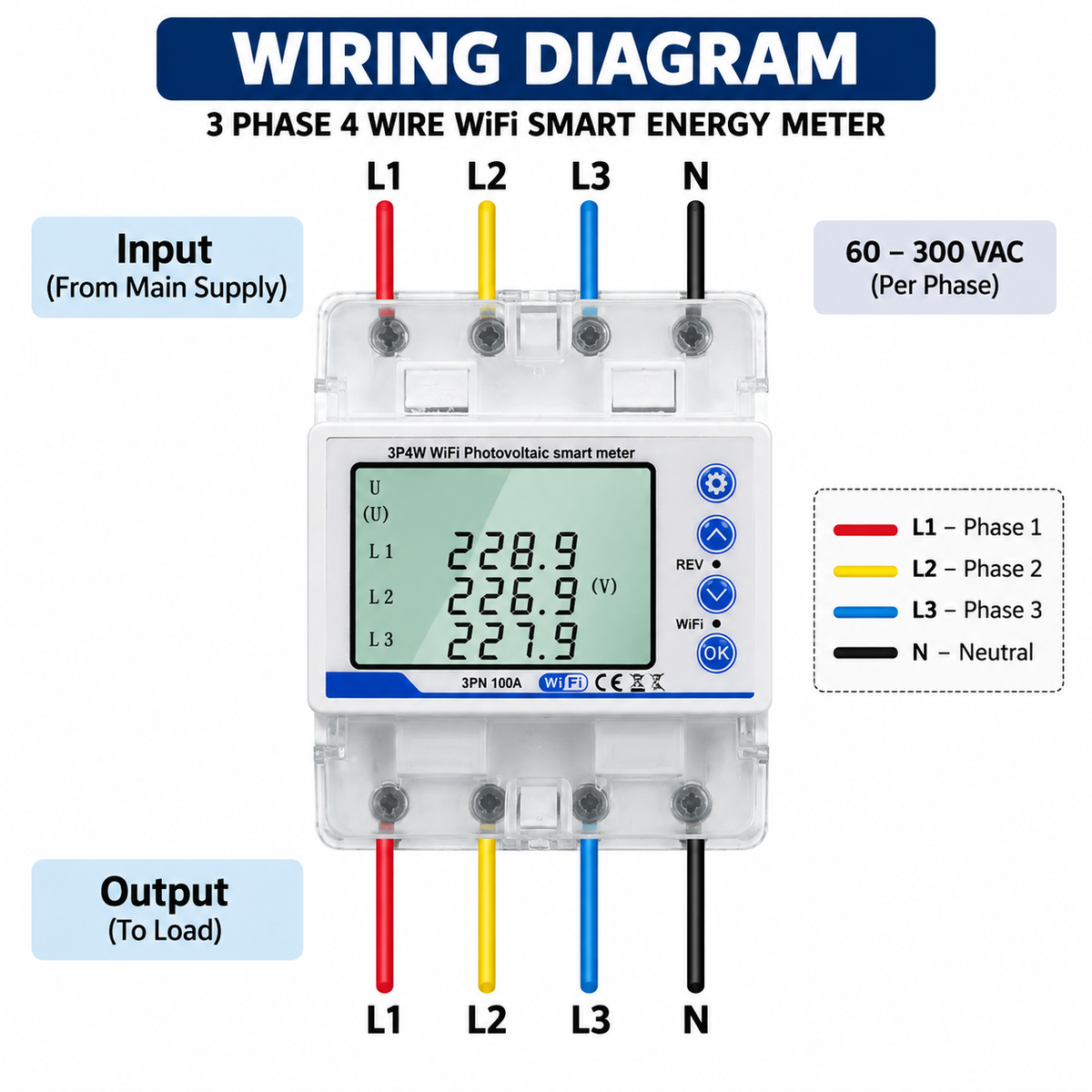

Connection: L1 / L2 / L3 / N
WiFi: Yes
Display: Digital LCD
Installation: DIN Rail
Product Type: Smart Energy Meter & Voltage Protector

Important: Electrical installation should be performed by a qualified electrician. Please verify the product specifications and wiring requirements before installation.
