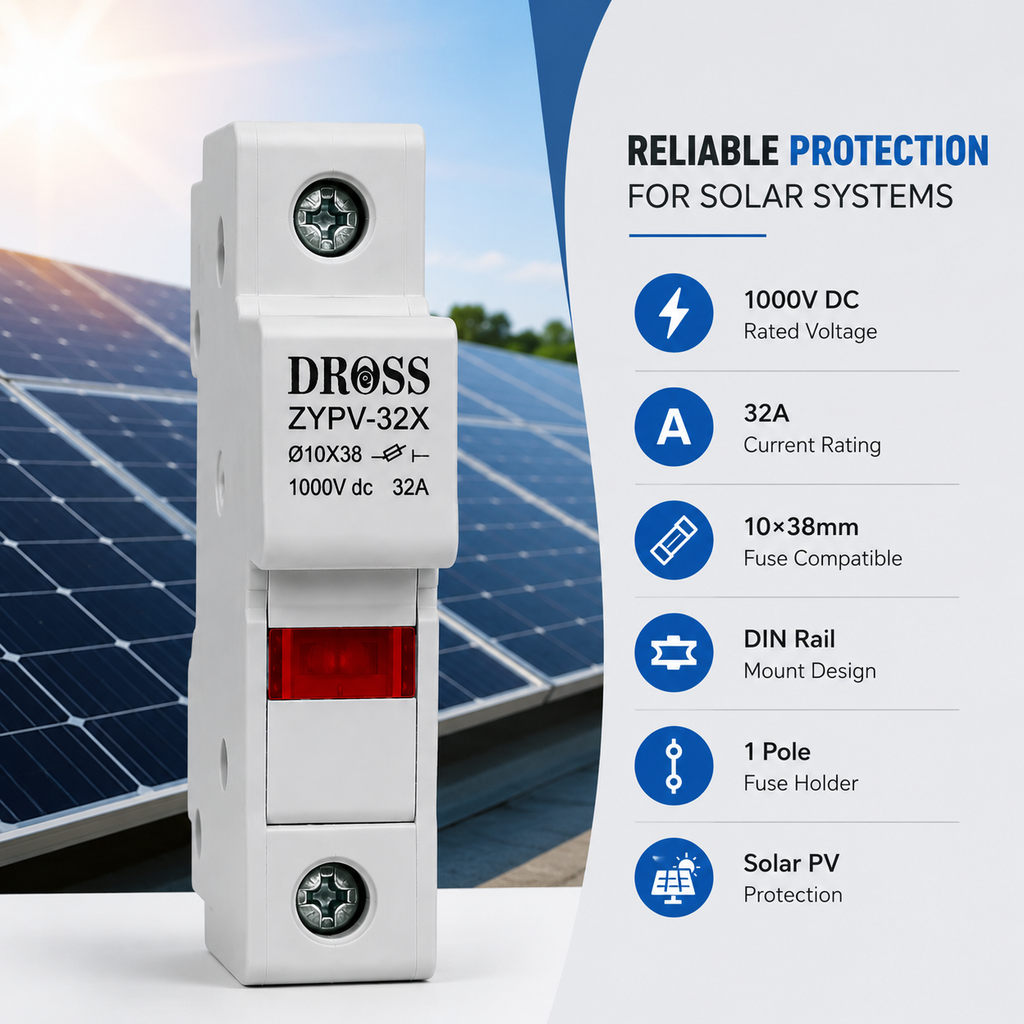

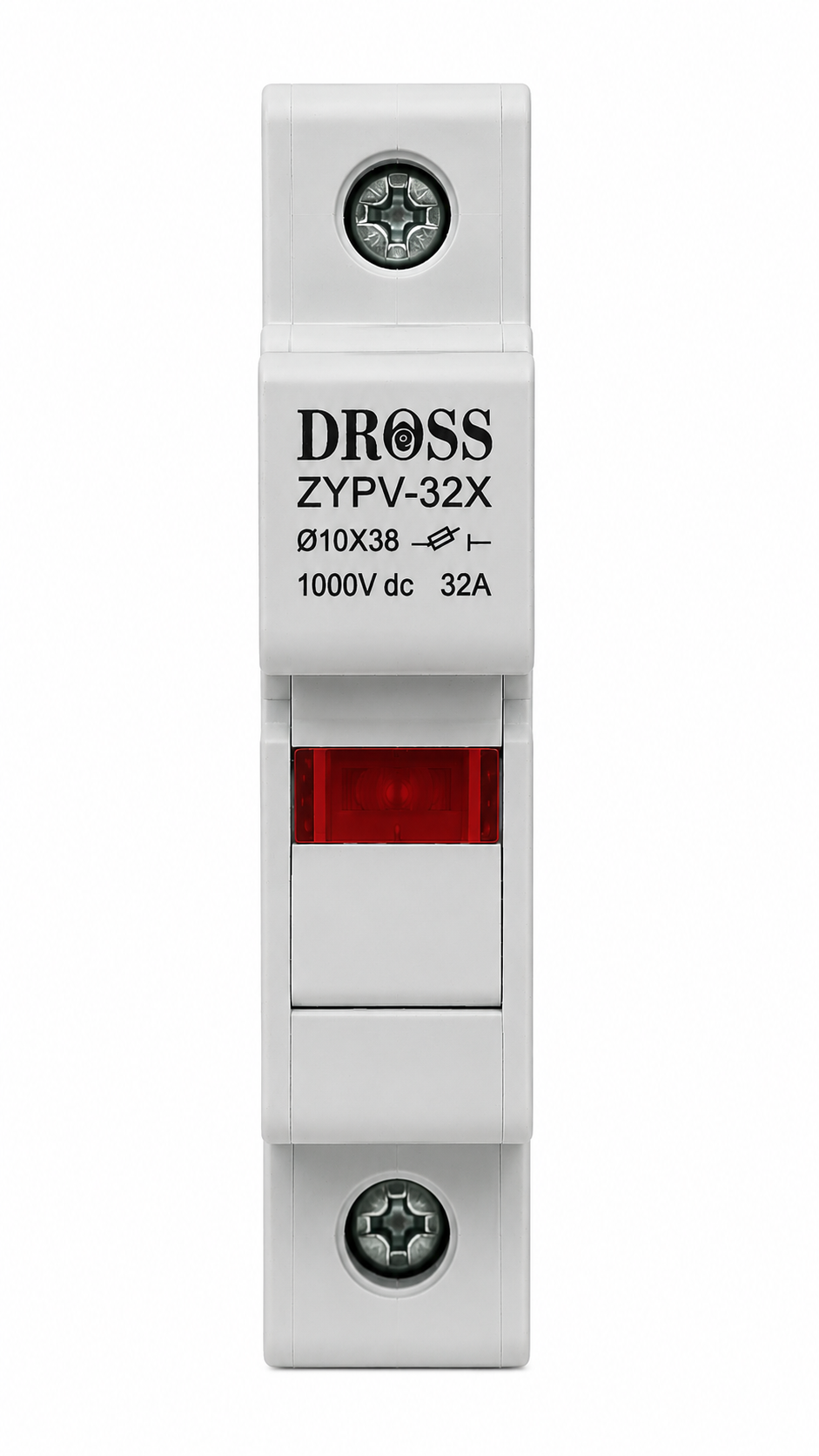

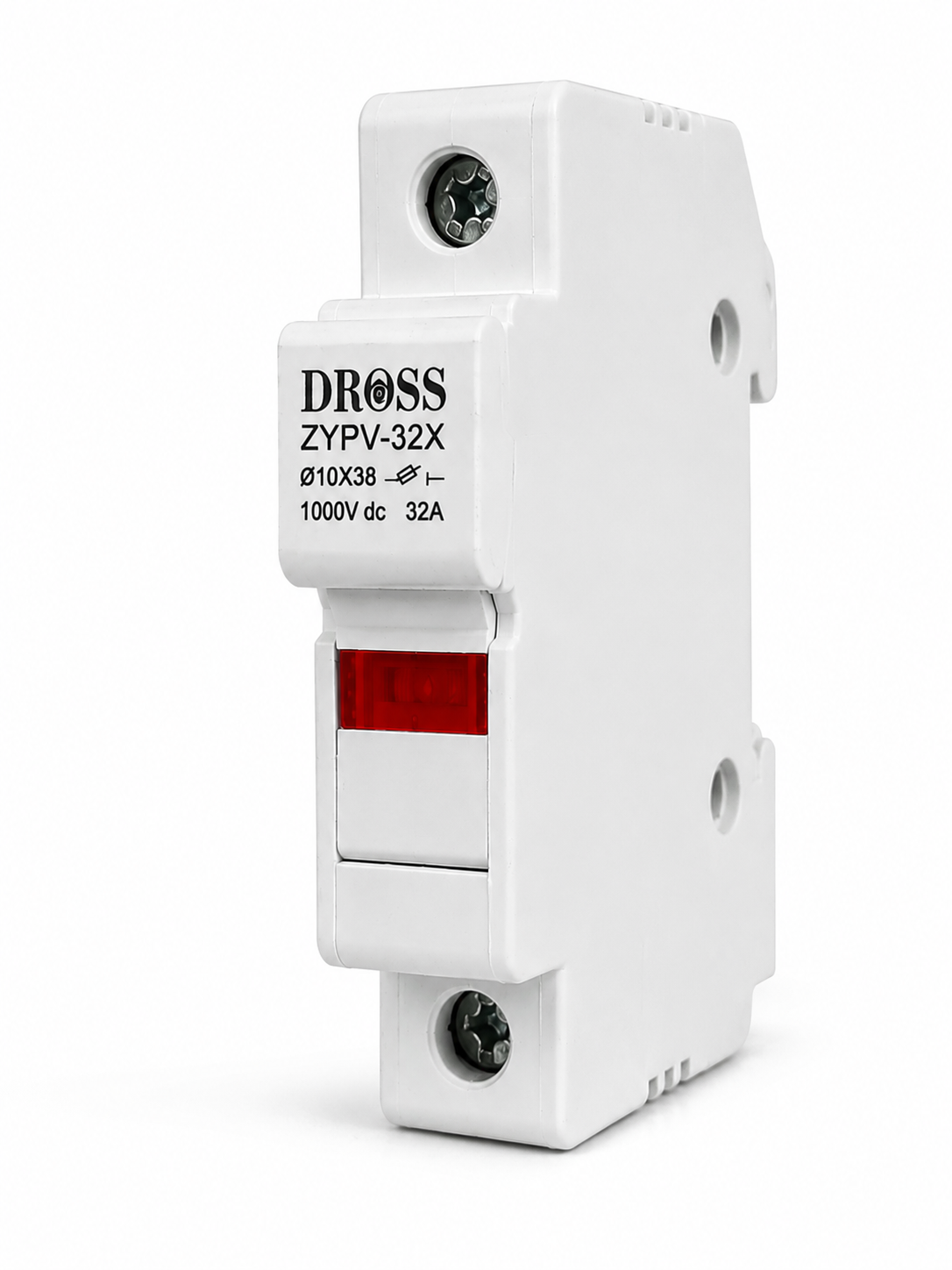

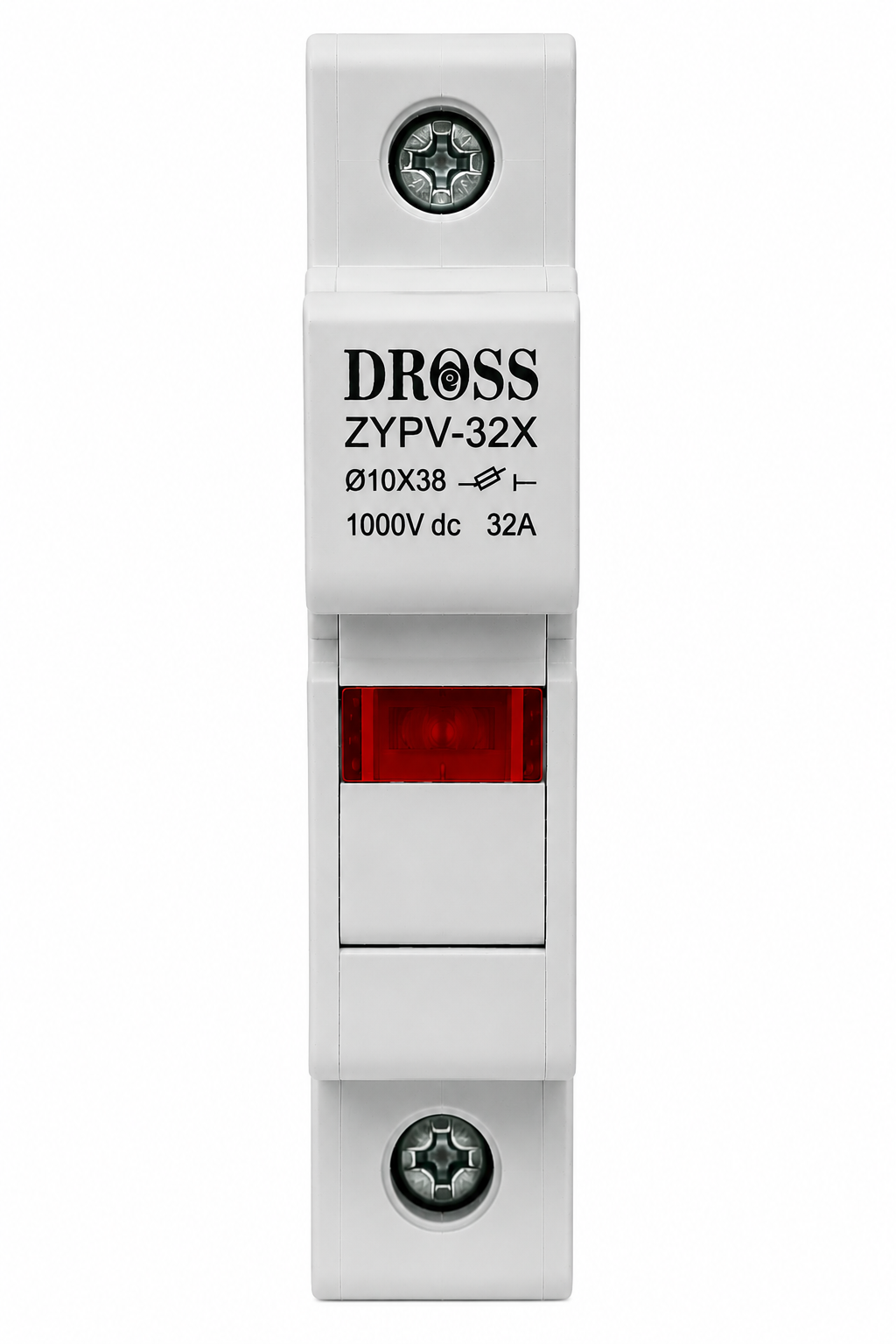

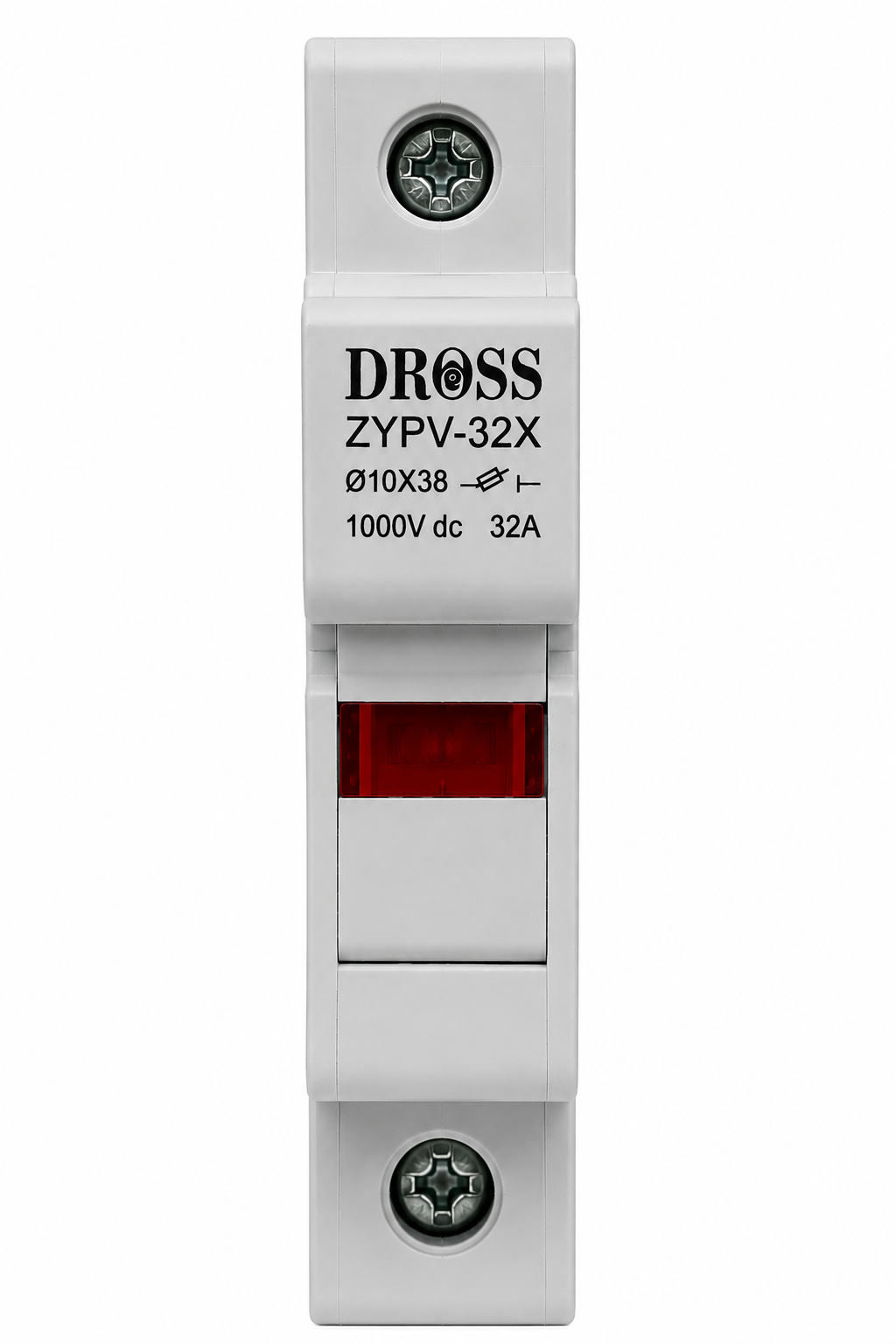

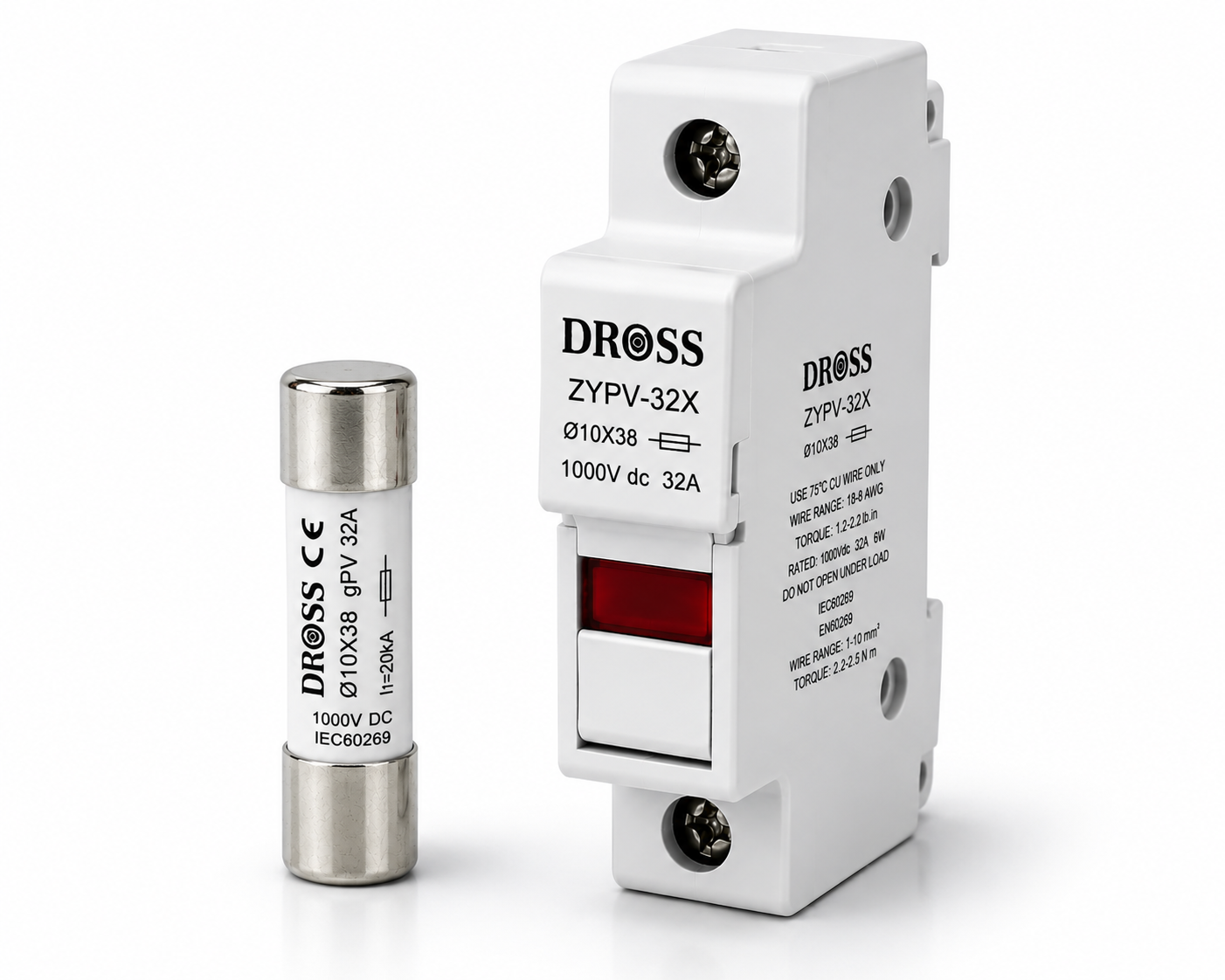

DROSS ZYPV-32X Solar PV Fuse Holder 32A 1000V DC – 10×38mm DIN Rail
DROSS ZYPV-32X Solar PV Fuse Holder 32A 1000V DC – 10×38mm DIN Rail

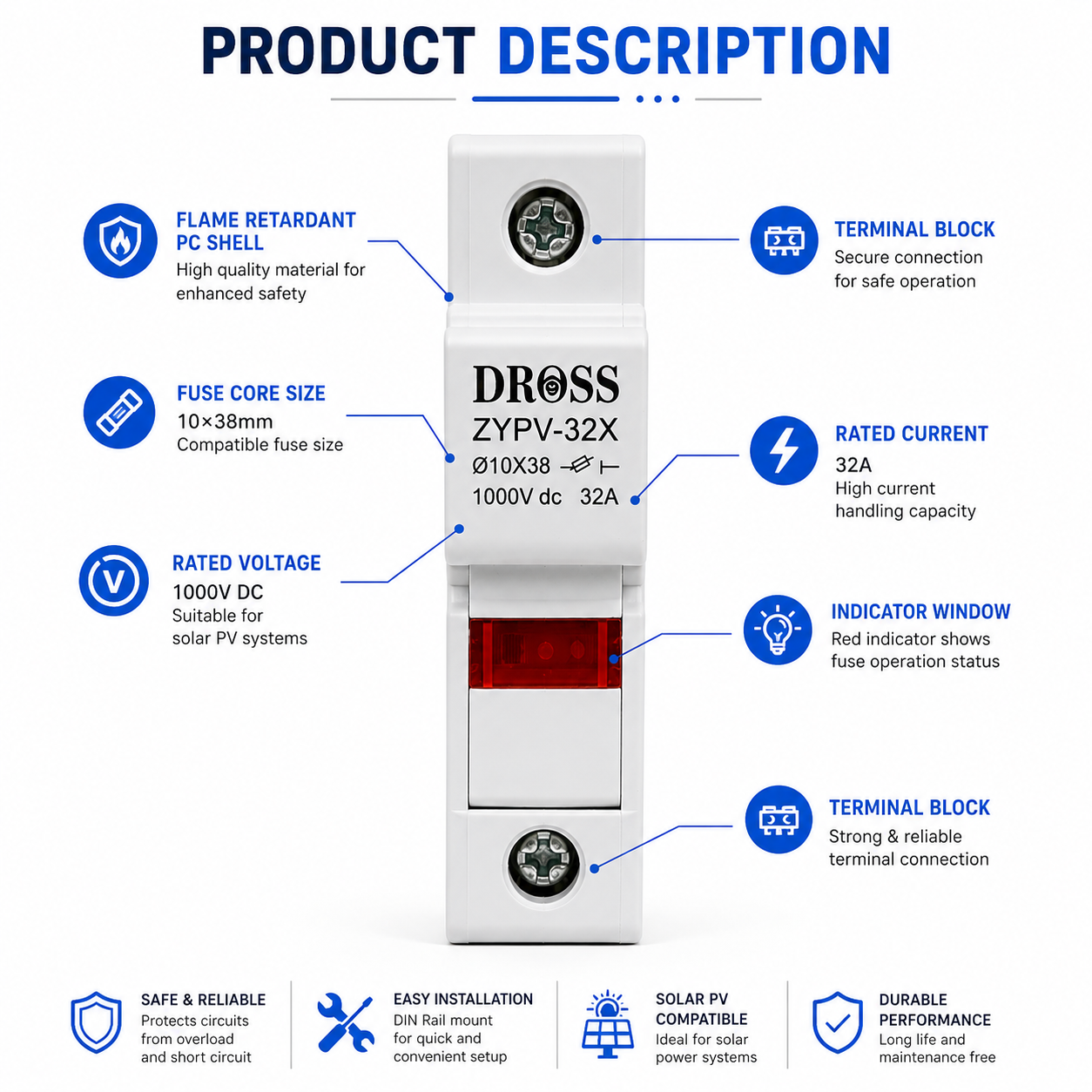

DROSS ZYPV-32X Solar PV Fuse Holder is designed for reliable protection and isolation in solar photovoltaic (PV) DC systems. It supports 10×38mm cylindrical solar fuse links and is suitable for use in solar PV arrays, DCDB boxes, combiner boxes and other DC electrical applications.
With a rated current of up to 32A and rated voltage of up to 1000V DC, the fuse holder provides a convenient and secure solution for installing replaceable PV fuse links. Its compact DIN rail mounting design allows easy installation inside solar distribution and protection boxes.

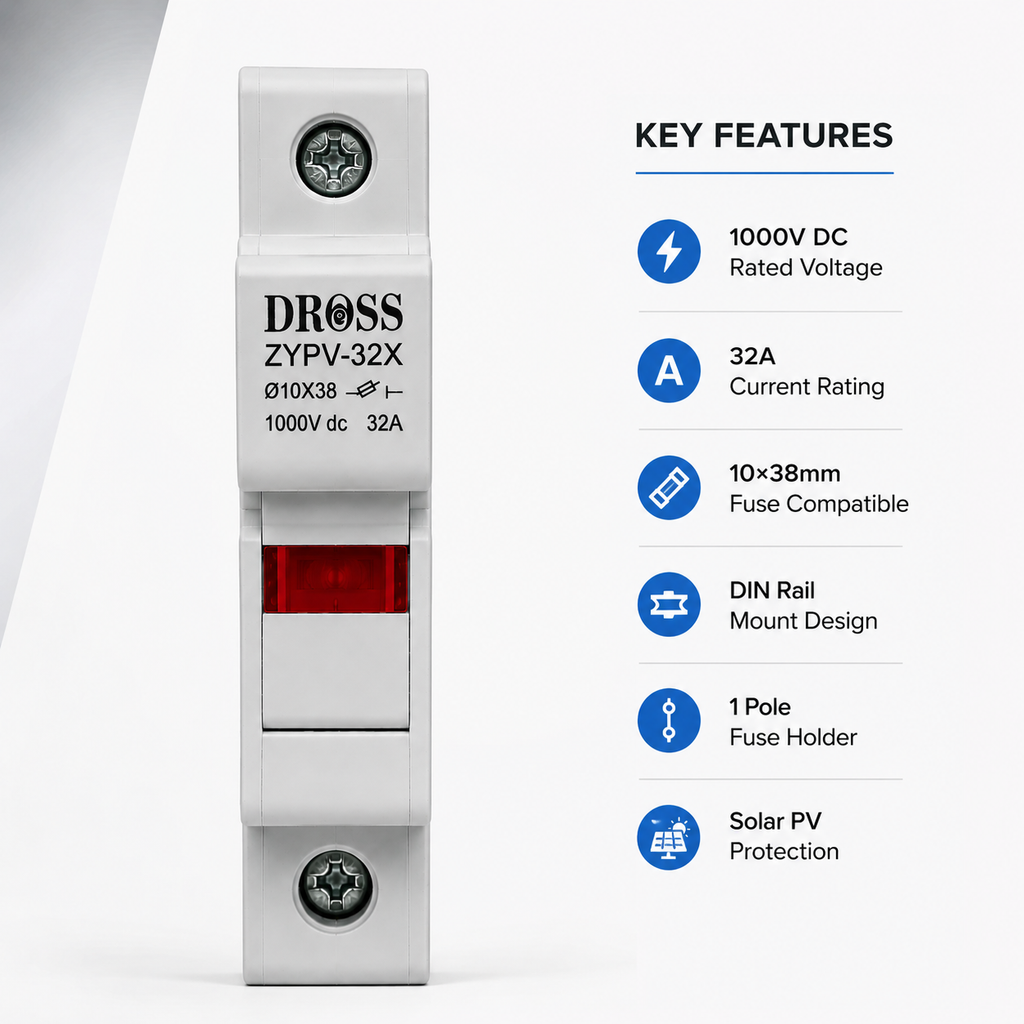

Key Features:
• Brand: DROSS
• Model: ZYPV-32X
• Product Type: Solar PV Fuse Holder
• Rated Current: Up to 32A
• Rated Voltage: Up to 1000V DC
• Fuse Size: 10×38mm
• Designed for DC Solar Applications
• DIN Rail Mounting
• Easy Fuse Installation & Replacement
• Compact and Durable Design
• Suitable for Solar PV Systems
• Suitable for DCDB & Combiner Boxes
• Suitable for Solar String Protection
Compatibility: which system does it fit?
- Voltage: DC systems up to 1000V DC. The maximum open-circuit voltage (Voc) of your panel string should stay below 1000V.

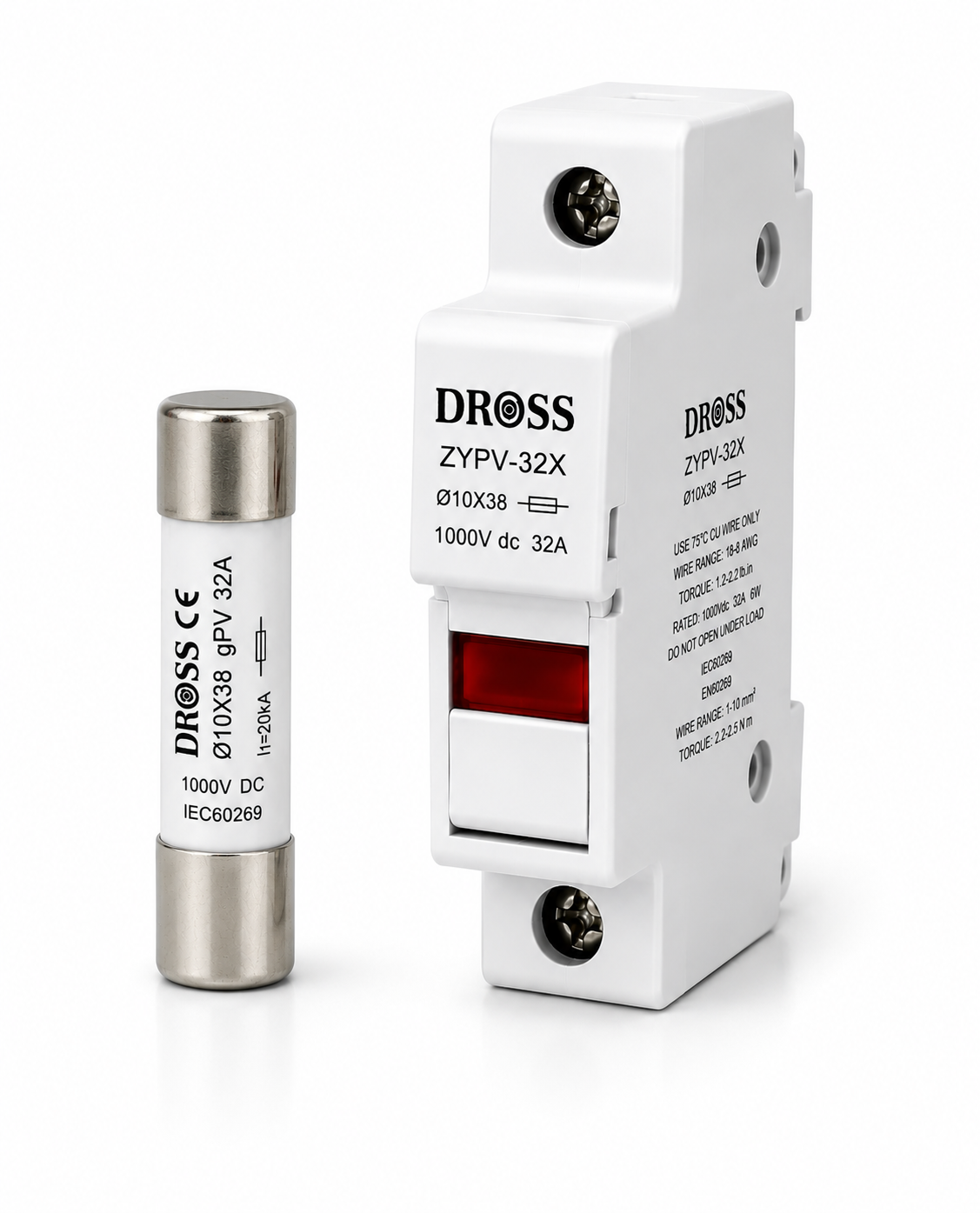

- Current: up to 32A. Use a 10×38mm PV fuse link chosen as per your panel datasheet (usually around 1.5 times the panel short-circuit current, Isc), and not above 32A.
- Fuse size: 10×38mm cylindrical PV fuse links only.
- Where it fits: panel string protection in combiner boxes and DCDB boxes.
- Poles: 1 Pole. It protects one DC line, so fit one holder on each line you want to protect.
- Mounting: standard DIN rail.
Solar installer guide: which protection to choose?
| Where in your system | What to use |
|---|---|
| Each panel string, before the combiner box or DCDB | DROSS ZYPV-32X fuse holder (1000V DC, 32A) with a 10×38mm PV fuse link |
| Switching off or isolating a DC circuit (string, DCDB, inverter input) | DROSS DC MCB 63A, 1 Pole or 2 Pole (600V DC) |
| Battery to inverter circuit (higher current) | DROSS DC MCB 125A, 1 Pole |
| Surge and lightning protection at the DCDB or inverter DC input | DROSS DC SPD-40 (Type 2, 600V DC) |
Simple rules: keep your system's maximum DC voltage below the device's voltage rating. Choose the DC MCB current rating about 125% of the normal circuit current (not above your cable's rating), and choose string fuses as per your panel datasheet. Not sure? WhatsApp us your panel wattage, number of panels in series and inverter or battery voltage on +91 99928 08001 and we will suggest the right protection. Installation should be done by a qualified electrician.
